Rieder GRC Form Parts

Formparts made of fibreC glassfibre reinforced concrete are monolithic concrete slats which offer a high degree of flexibility and various design options for innovative building envelopes.

The formed concrete elements with an optimised fastening system enhance glass facades and serve as a refined visual and sun protection.

Pre-assembled Formparts
The pre-assembly in the factory, independent of weather conditions, ensures a high quality standard and quick assembly on site. The elements are simply mounted and then fine tuned.

Fire-rated
Fire resistance with fire protection class A1 “non-combustible” according to DIN 4102.


Sustainable
With its ISO 9001 and ISO 14001 certifications, Rieder sets itself high standards for environmental protection. The environmental product declaration, EPD, gives precise indicators for the life cycle assessment.

New Mounting System – Plug & Play

The jointed formed parts are connected using different mounting brackets depending on size. As a system supplier, Rieder provides coordinated components, resulting in an integrated solution from a single source. The simple anchorage system allows on-site adjustment, high fitting accuracy and concealed mounting.

The mounting options are compatible with all standard supporting structures and are a time-saving, economical and sustainable alternative. For the mounting of formparts. Rieder offers a library of standard details with typical vertical and horizontal sections as well as details for fire barriers, connections for glass facades, shutter boxes, ceiling façades, roof connections and column façades. Based on project experience, a large collection of prepared special solutions for mounting on a wide variety of building and facade types is also available.

Colour Collections

The authentic colours blend well into landscapes and correspond with nature and the environment. Colour variations within a colour tone are intended and enhance the liveliness of the building material, concrete.

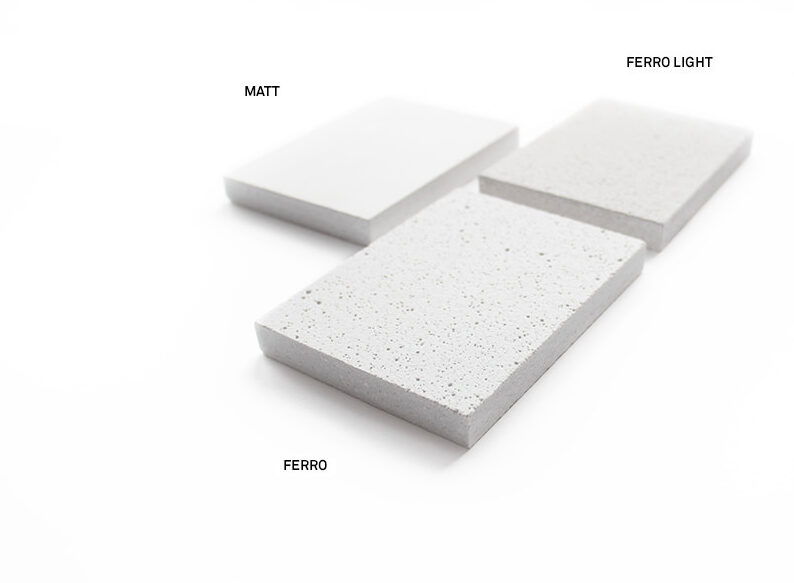

formparts.mono are available in the surfaces ferro and ferro light; the formparts.fab are also available with a matt surface. They can be easily combined with concrete skin.

bricky

timber

greyscale

pietra

Surfaces

The authentic colours blend well into landscapes and correspond with nature and the environment. Colour variations within a colour tone are intended and enhance the liveliness of the building material, concrete.

Each colour is available in three surfaces.

Textures

Add liveliness and depth to any facade. The various structures create an exciting interplay of light and shadow.

Edit Content

lumber

lumber is based on an authentic natural look. A homogeneous wood grain lends the building envelope a strong depth effect. Similar to wood, the facade panels have a multi-layered effect, but unlike wood, they do not require additional weather protection.

Edit Content

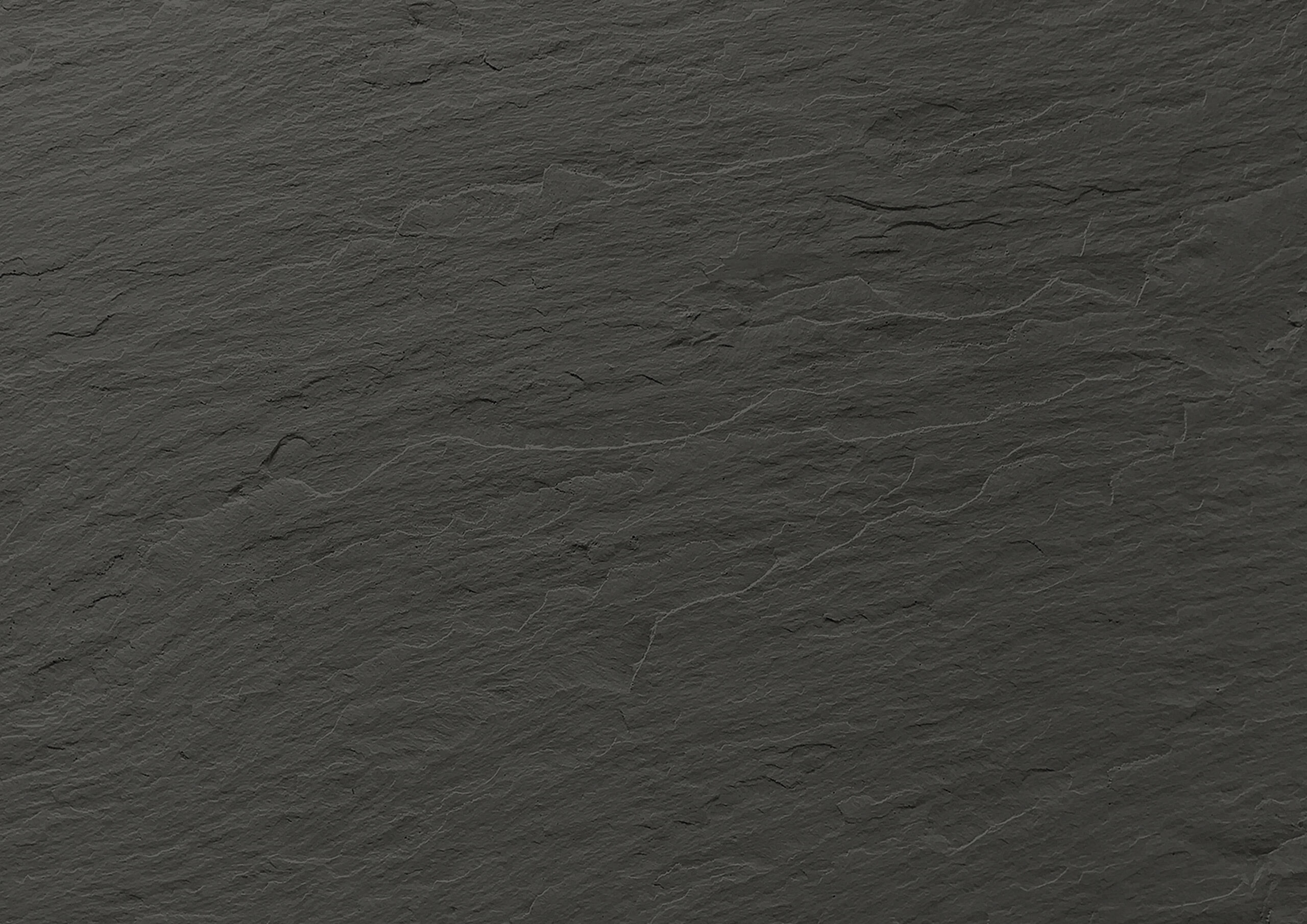

Slate

The appearance of the new slate texture is based on slate slabs and their natural layers. A unique light refraction occurs at the edges of the rock layers, causing them to stand out to varying degrees depending on the angle the light hits. Since light conditions change over the course of the day, the facade with this texture has a different appearance depending on the time of day.

Edit Content

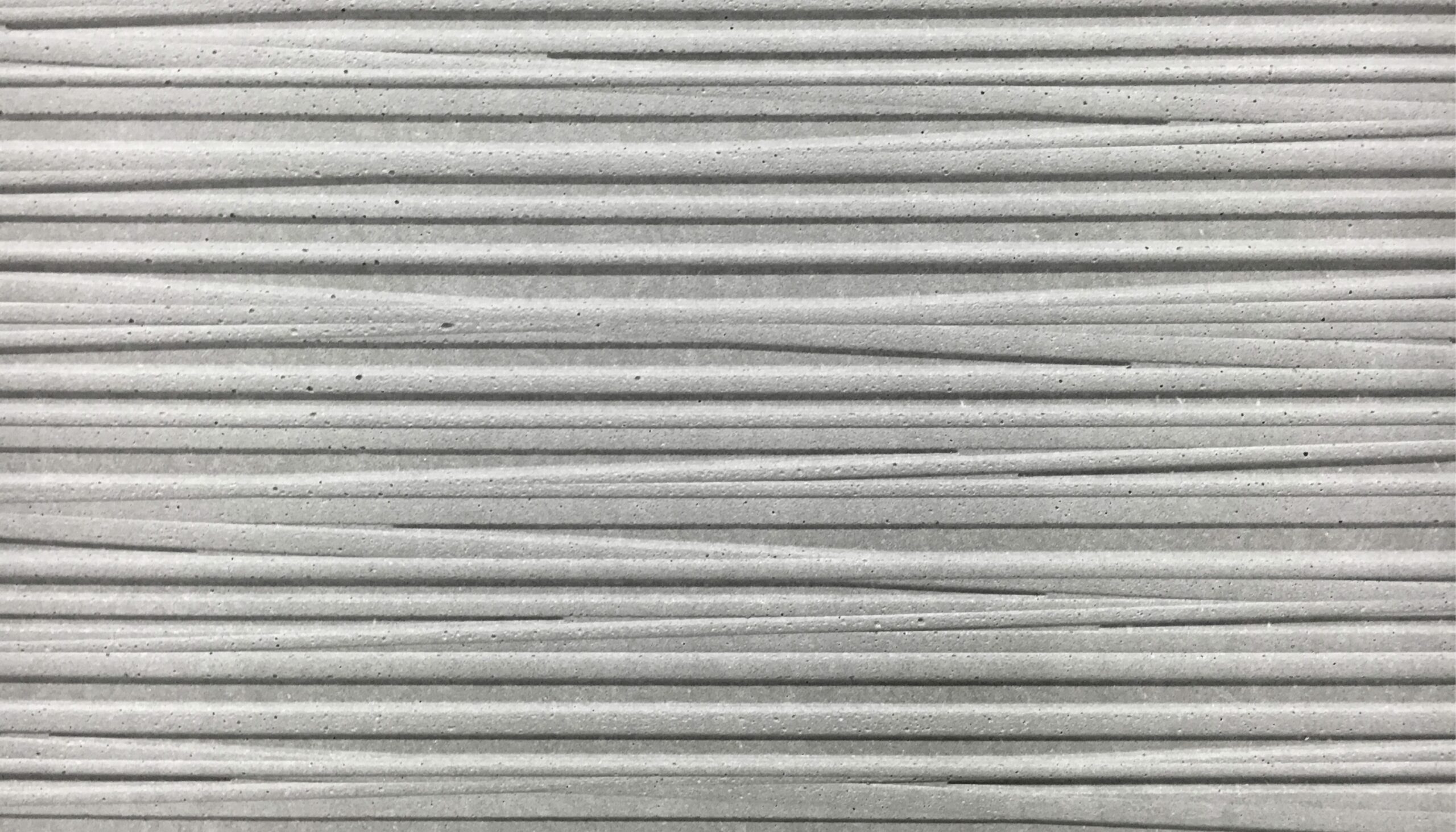

twine

Irregular lines playfully run across the slabs like ribbons. The combination of straight and angled, partially overlapping lines of different sizes creates an exciting visual effect on the facade. The flow of the lines harmoniously integrates into the overall picture.

Edit Content

vintage

The natural imperfection and visual irregularity of the vintage panels give the facade a unique appearance and above all individuality, since no slab is like any other.

Edit Content

luce silver

The addition of mica gives the facade a glittering, shimmering appearance. Depending on how the sunlight falls, the particles reflect in different ways and create unique effects. This is definitely the texture for individual highlights.

Edit Content

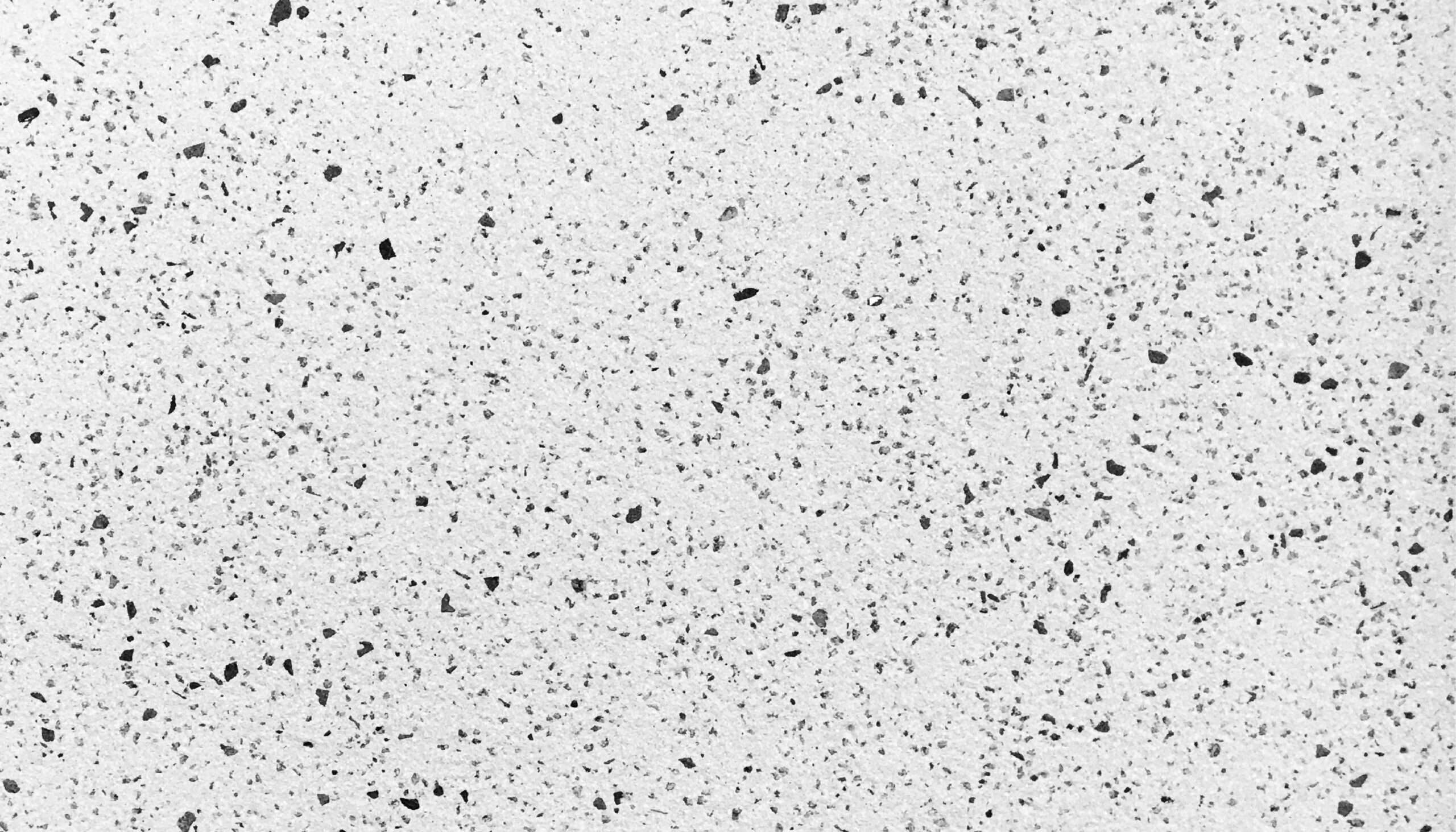

terrazzo black

The coarse, dark grain gives this slab a individual look. A special surface treatment lends the texture a unique speckled appearance, which forms an exciting contrast especially with light colours. terrazzo black gives the facade a discreet two-tone effect.

Edit Content

glossy (Interior)

The exquisite texture is an interior highlight and an elegant eye-catcher. The shiny surface reflects the light and creates a new space effect. The slabs have a different look depending on how the light falls. This texture particularly emphasises the vivid surface characteristic of concrete with its interplay of colour shades and cloud effects. The natural appearance of the material changes over time, giving each panel a unique look.

Edit Content

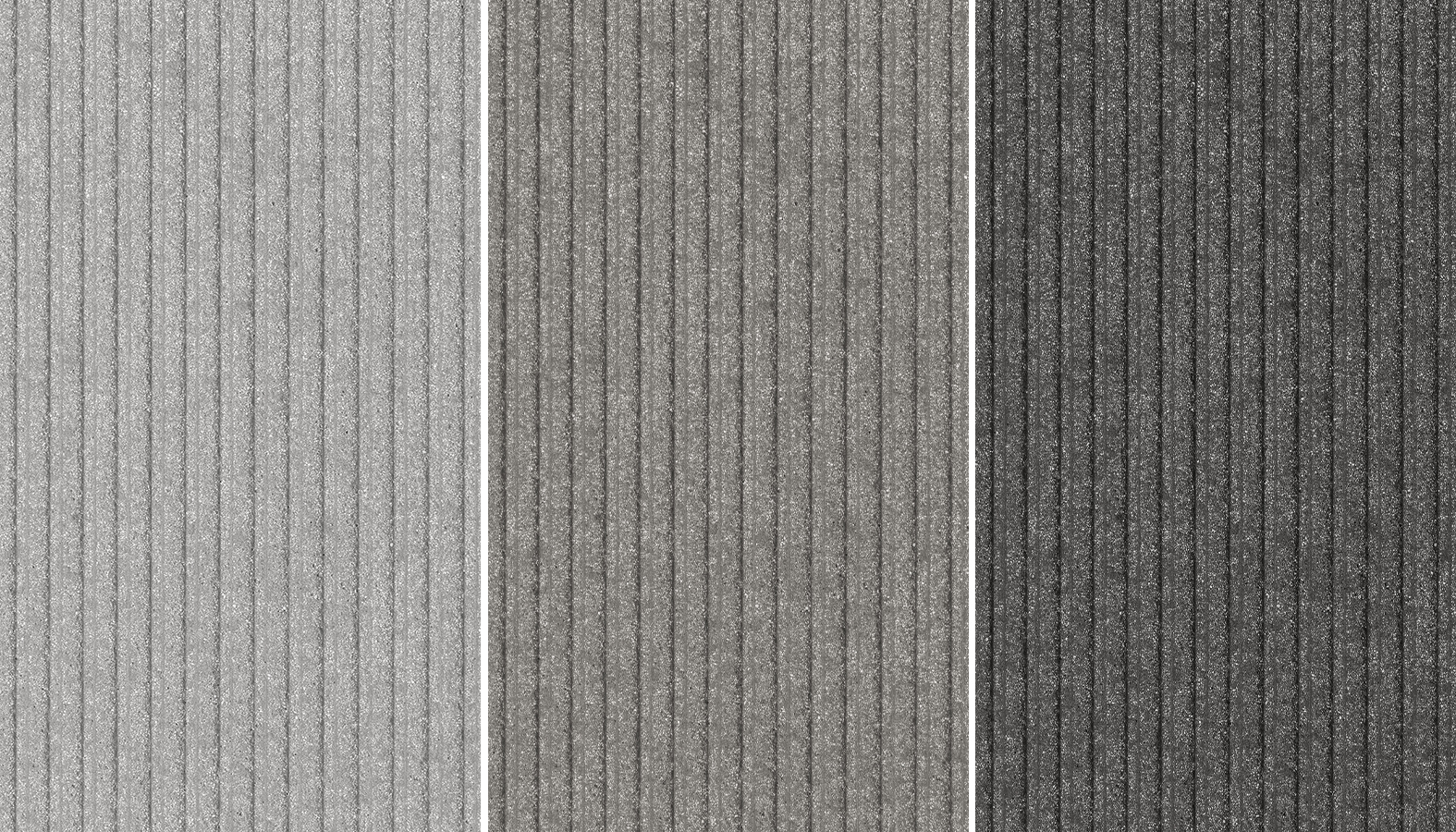

groove

Accentuated lines in three different finishes ferro soft, ferro light and ferro create a lively relief and set exciting highlights on every facade.

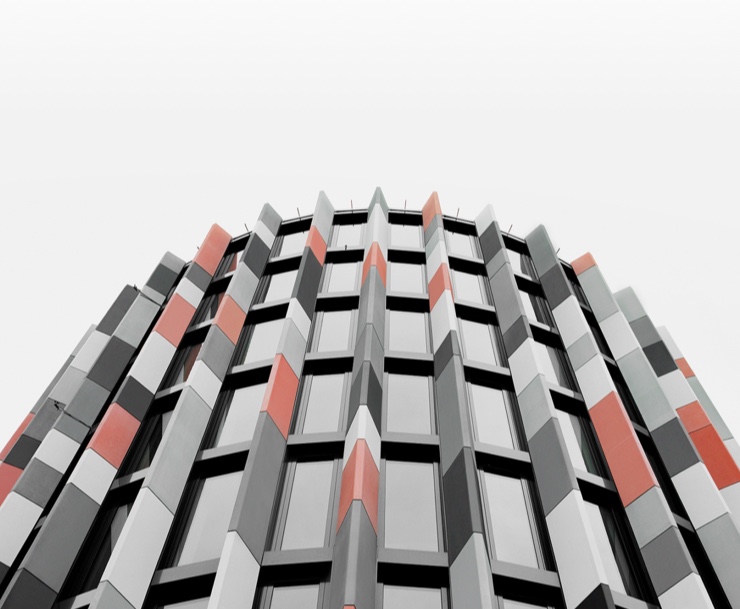

Formpart Shapes

The formed elements are tailor-made as a single piece and are available with L- or U-cross section, as a round arch, and as special shapes with a length of up to 5 meters.

  • Only 13 mm thin
  • Up to 5 meters long
  • Development width max. 2000 mm
  • Various cross-sections

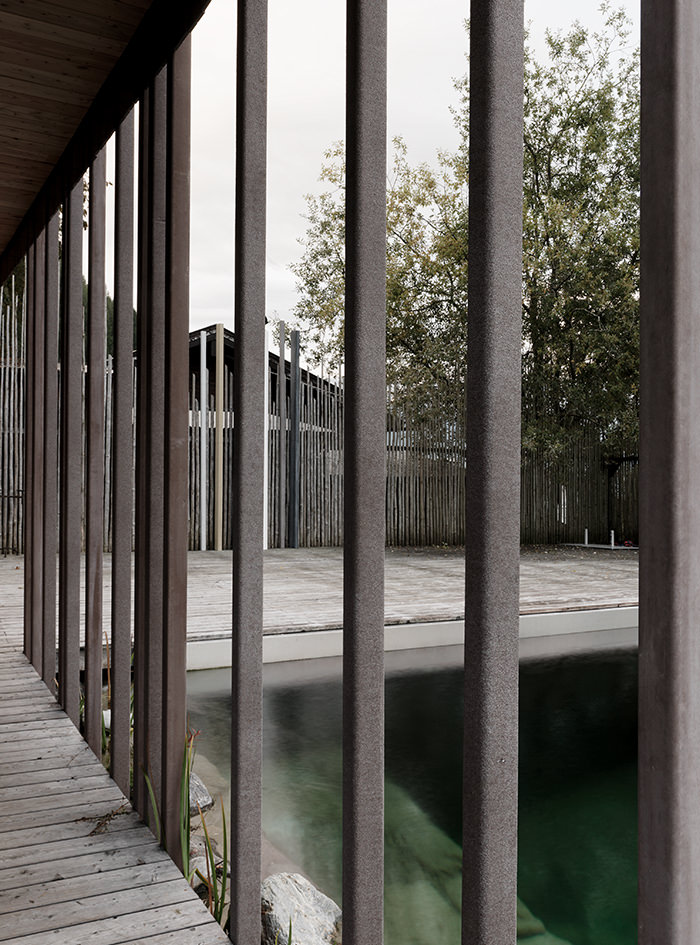

GRC formpart Fins

fins are formparts with a U-shaped cross-section in a 70 x 70 mm format. They are used as slender concrete slabs for facades to serve as permanent visual and sun protection for large window areas.

fins also create creative design accents on the building envelope. Due to the geometrical shape of the fins, the daylight creates special light effects in the interior.

Standard formats
70 x 70 x 1800 mm
70 x 70 x 3600 mm

Unlock Limitless Design Possibilities

with GRC Concrete Skin and Ceramic Rainscreen Systems!

Embrace the power of customization! Our innovative systems can be tailor-made to meet your unique design requirements, allowing you to create striking facades that truly stand out. With our extensive range of materials, colours, shapes, and sizes, the possibilities are endless. Whether you envision a sleek and modern look or a timeless and elegant aesthetic, we have the tools to bring your ideas to fruition.

Contact us today to discuss your project and take the first step towards transforming your building’s facade into a work of art. Together, let’s redefine what’s possible in commercial architecture.

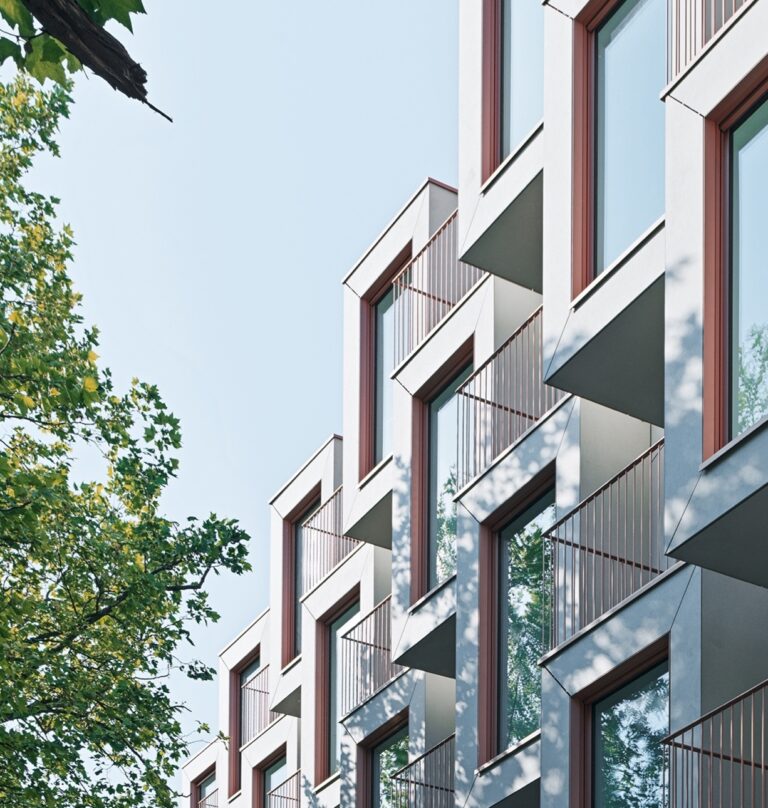

Sustainability

Certificates

With its ISO 9001 and ISO 14001 certifications, Rieder sets high standards for environmental protection. The environmental product declaration EPD give precise indicators for lifecycle assessments.

Reusable Material

Rieder’s aim is to reduce or avoid pre- and post-consumer waste by replacing raw material with recycled glassfibre reinforced concrete and by reusing offcuts.

Eco-efficiency

Only a small amount of primary energy is consumed during the production of glassfibre reinforced concrete, in turn resulting in a low CO2 load and a minimal greenhouse effect.

Rieder GRC Formparts Projects

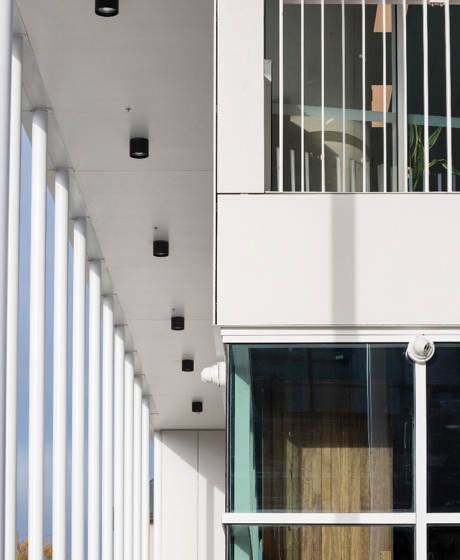

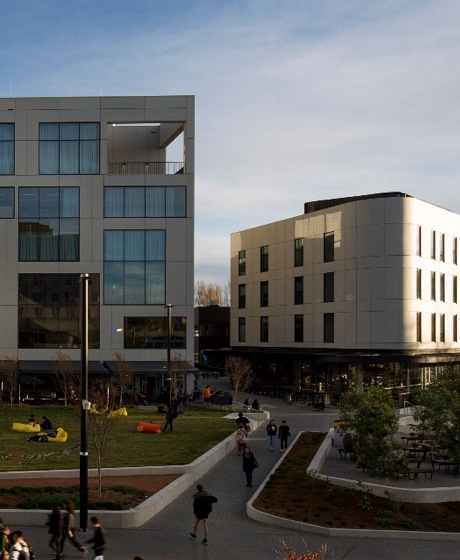

Anu Kambri Campus, Canberra

Rieder Concrete Skin GRC Façade System

A $260 million redevelopment at the Australian National University (ANU) and the new meeting place for the Canberra and university community. The BVN Sydney designed campus housing 5 new buildings set on a tree lined promenade containing a range of new retail and service outlets.

Reider Concrete Skin was selected to clad 3 of the 5 new buildings in this project

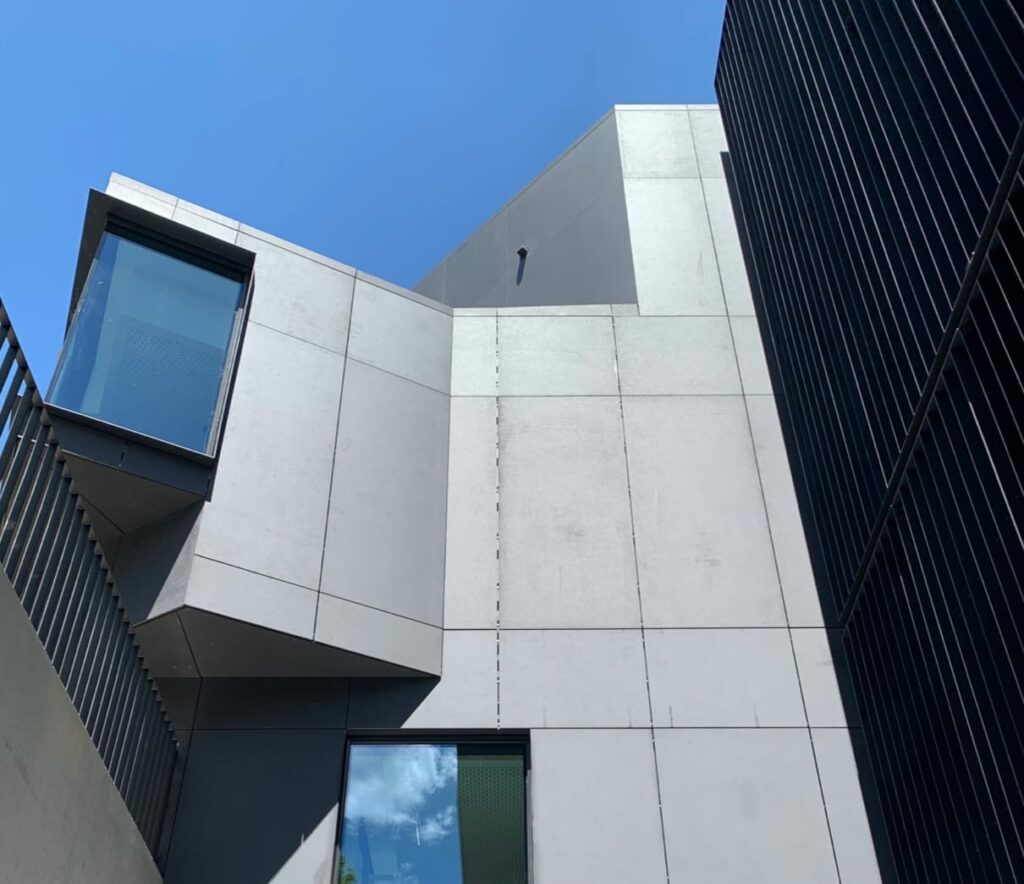

Loretto School Project

Rieder GRC Concrete Skin Façade System

Location: Clendon Rd, Toorak, Melbourne
Project overview: New Secondary School Building (Years 7-9)
Project size: 7500m2, 6 level new building
Architect: Architectus
Builder: Vaughan Construction
Façade Installer: Kospol Facade
Cladding Manufacturer: Rieder GRC
Cladding Product, Colour: Concrete Skin, Liquid Black.
